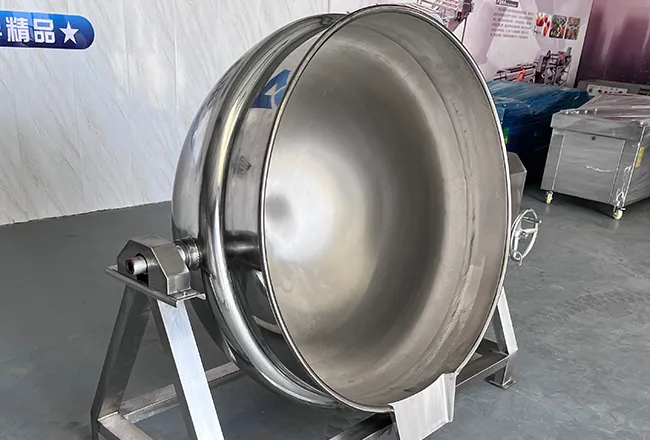

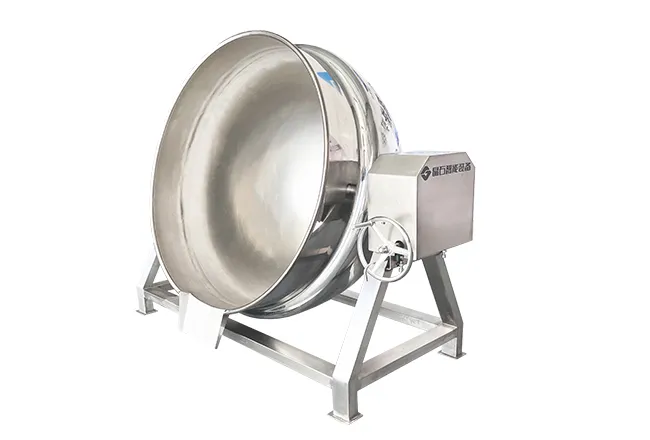

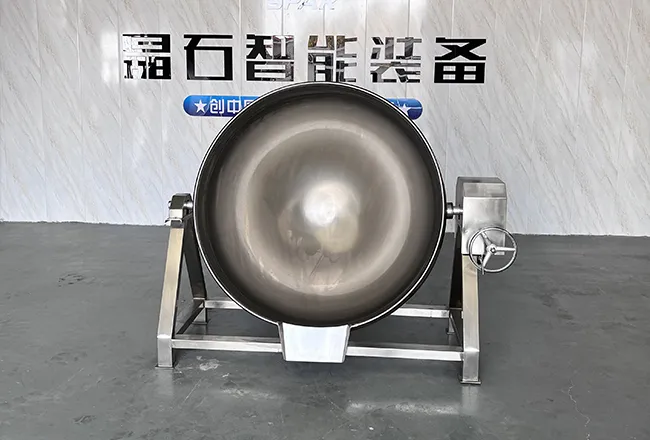

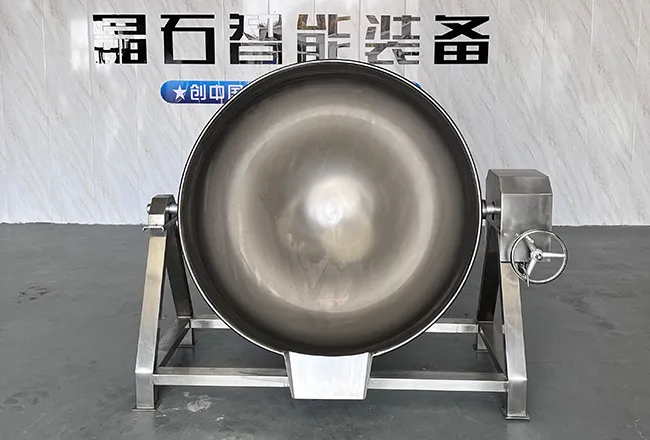

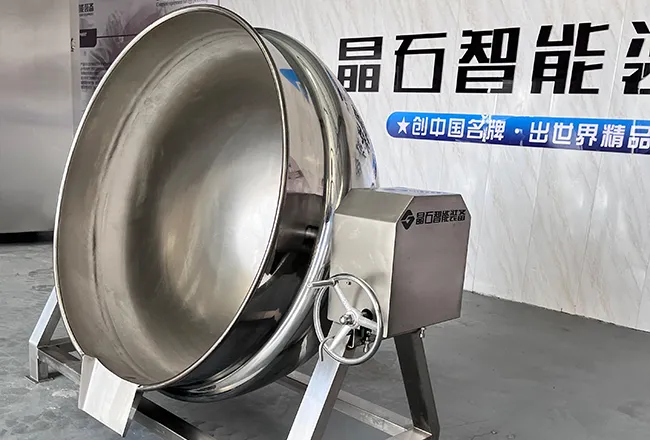

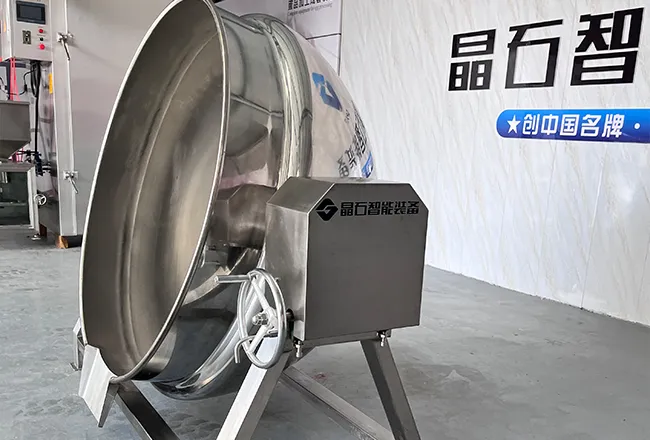

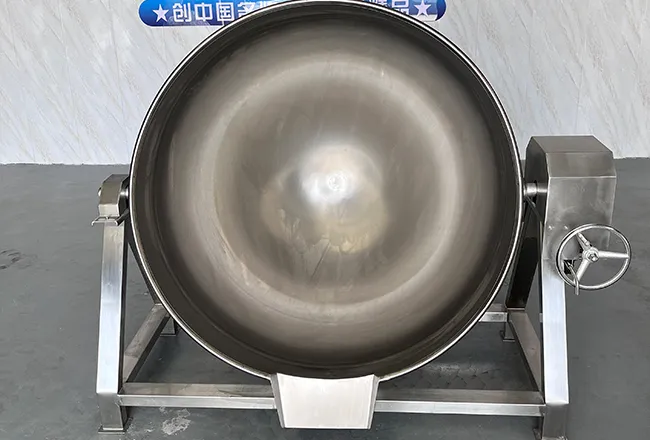

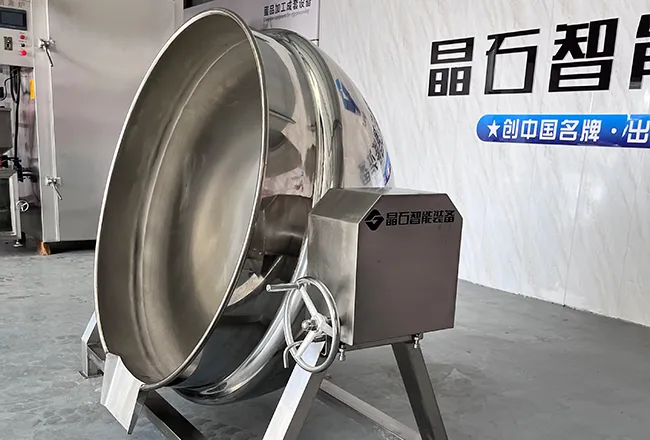

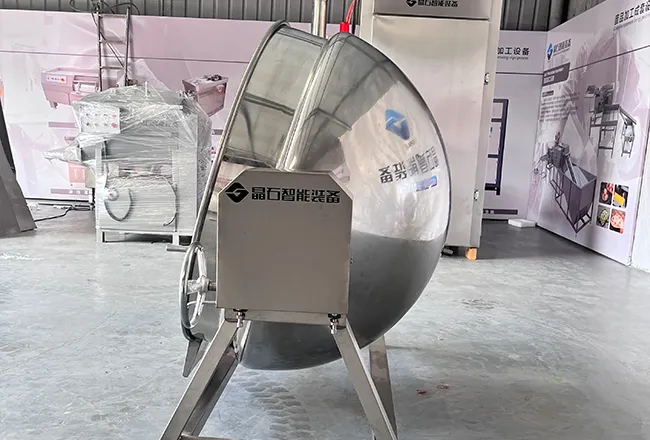

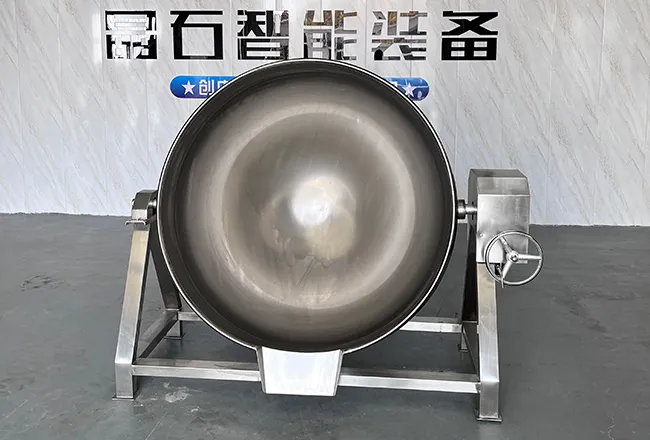

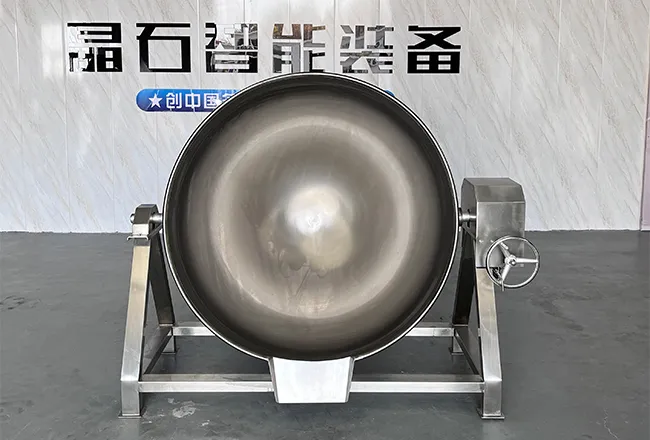

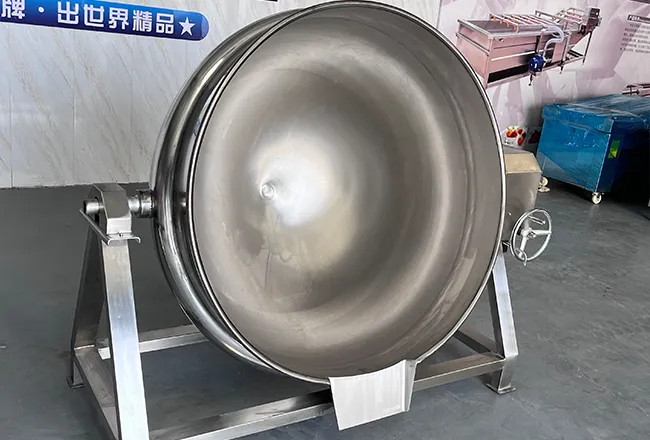

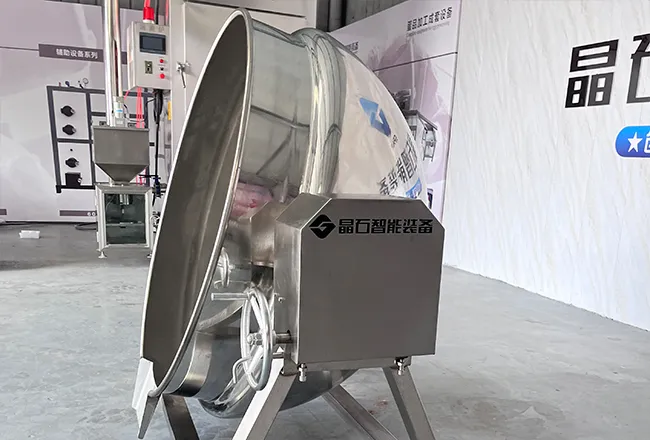

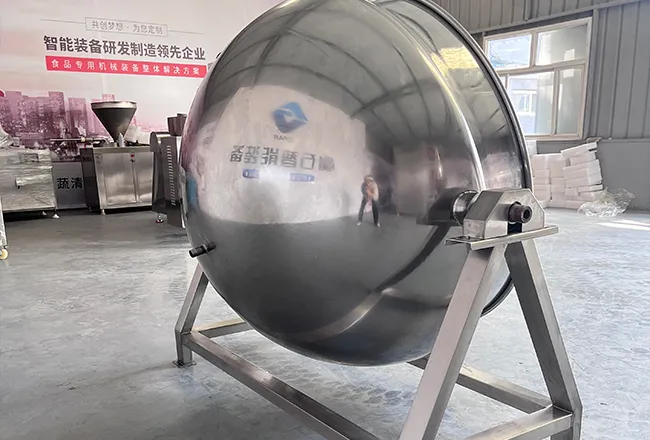

The jacketed kettle, also known as a steam kettle or cooking kettle, is a widely used heating device in various industries such as food processing, chemical, and pharmaceutical sectors. In food processing, it is mainly used for cooking, simmering, concentrating, evaporating, and sterilizing operations. For example, jacketed kettles can be used to cook jams, boil syrups, stir-fry sauces, and braise meats. It is one of the common pieces of equipment found in kitchens and food processing factories.
| Model | Diameter | Electric Heating Power | Heat Transfer Area (㎡) | Heat Transfer Oil | Overall Dimensions (Vertical) (mm) | Overall Dimensions (Tiltable) (mm) |
| Model 50 | 600mm | 9KW | 0.45 | 20 | 600*600*800 | 1100*750*900 |
| Model100 | 700mm | 18KW | 0.58 | 30 | 700*700*800 | 1200*880*900 |
| Model200 | 800mm | 18KW | 1.12 | 55 | 800*800*860 | 1400*1000*950 |
| Model300 | 900mm | 27KW | 1.42 | 65 | 900*900*900 | 1700*1300*1000 |
| Model 300 (with Agitator) | 900mm | 27KW | 1.42 | 65 | 1000*1000*950 | 1800*1400*1100 |
| Model400 | 1000mm | 27KW | 1.75 | 75 | 1100*1100*1000 | 1750*1450*1150 |
| Model500 | 1100mm | 36KW | 2 | 120 | 1200*1200*1000 | 1900*1500*1200 |
| Model600 | 1200mm | 36KW | 2.3 | 160 | 900*900*900 | 1500*1200*1320 |
| Model 600 (with Agitator) | 1200mm | 36KW | 2.3 | 160 | 1200*1200*1000 | 1700*1400*1450 |
| Model800 | 1300mm | 36KW | 3.2 | 200 | 1300*1300*1100 | |
| Model 1000 (with Agitator) | 1400mm | 45KW | 3.9 | 250 | 1400*1400*1200 | 1950*1600*1700 |
